Product Introduction

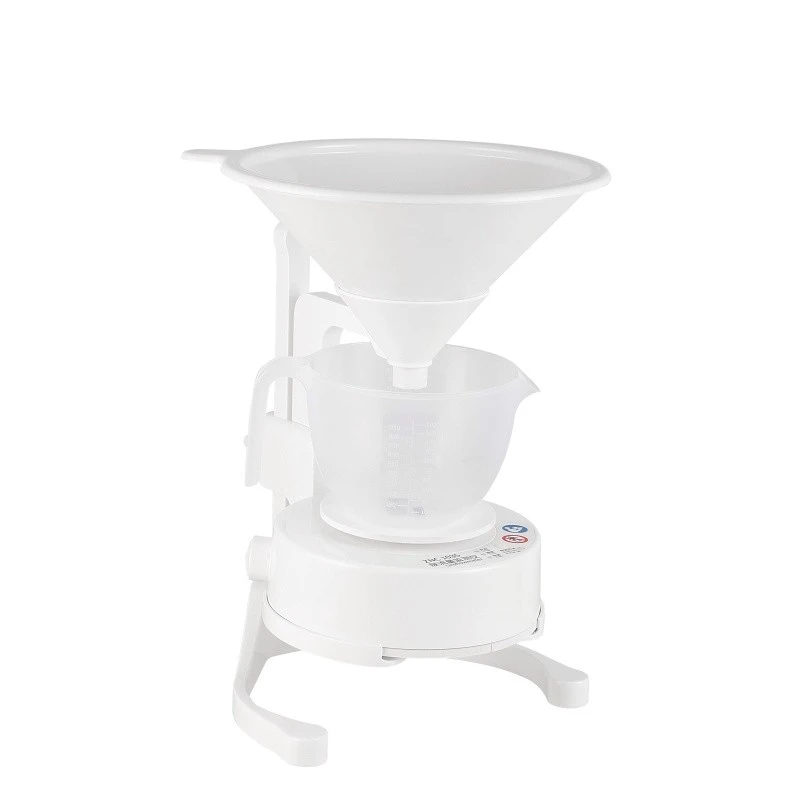

ZNC 1015 and 1035 Intelligent Uroflowmeter adopt high-precision sensors and advanced measuring technology to detect patients' urine flow parameters and record real‑time process curves. It provides stable and objective data for clinical evaluation of lower urinary tract function.
Scope of Application
It measures urine flow parameters including urine volume and urinary flow rate, and generates complete process curves. It is used by doctors to evaluate lower urinary tract function, diagnose obstruction diseases, support treatment selection and assess clinical efficacy.
Working Mode
ZNC 1015:
Wired mode only
ZNC 1035:

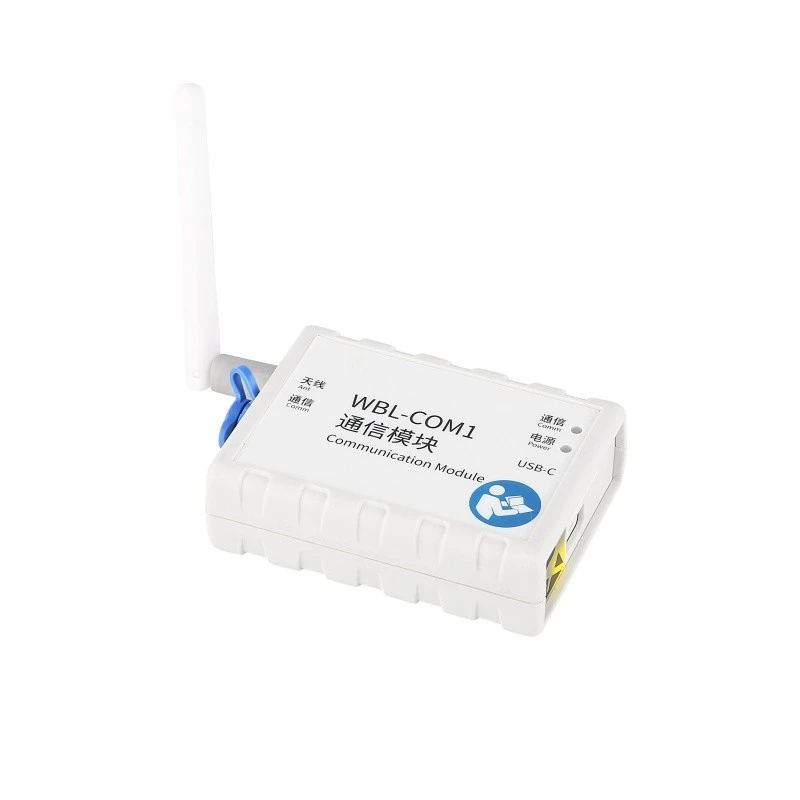

Wired mode + wireless mode
Wired:
USB DC 5V 1A power supply
Wireless:
Nickel-hydrogen battery power supply
Performance Features
Multi-parameter automatic measurement, calculation and curve printing
One-click automatic report generation
Weighing-type measurement for high accuracy
Support multiple copies of case report duplication

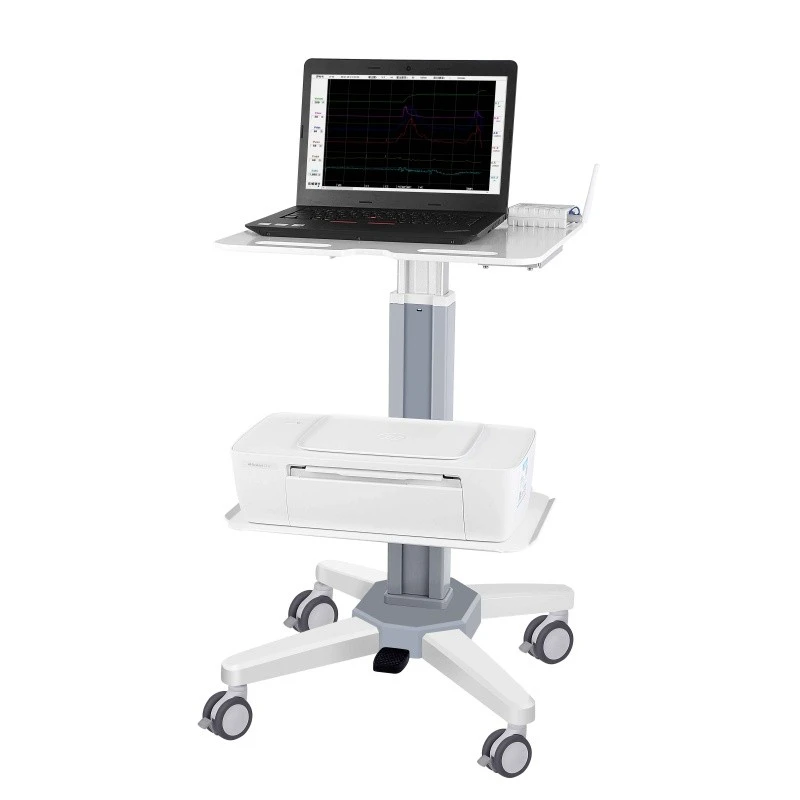

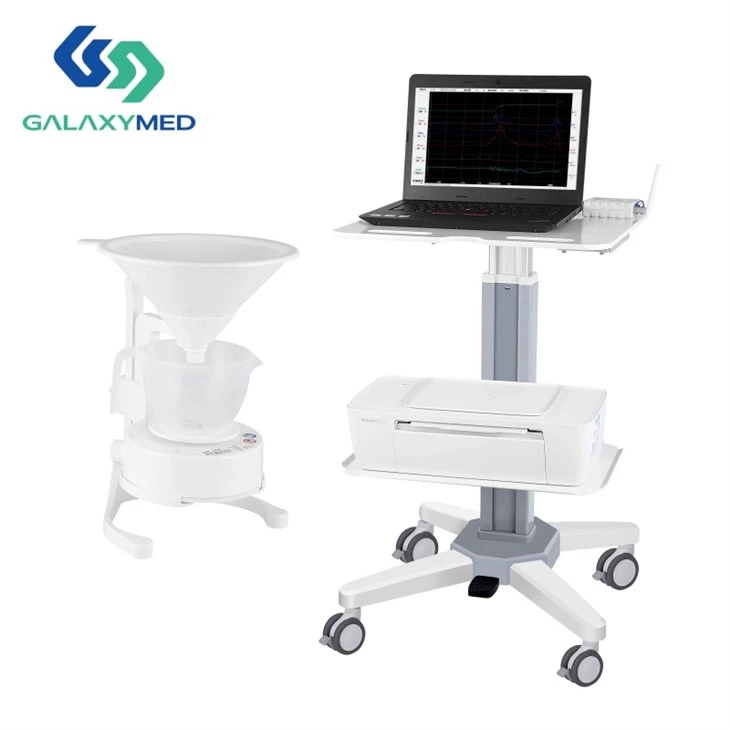

Optional trolley, computer and printer
Examination Parameters
- Full-range urinary flow rate curve
- Maximum flow rate & average urinary flow rate
- 2-second urinary flow rate
- Whole-course urine volume curve
- Urination time, voiding time, waiting time
- Time to reach 10% / 95% urine output
FAQ
Q1: What is the difference between ZNC 1015 and 1035?
A: 1015 is wired only; 1035 supports both wired and wireless.
Q2: What measurement method does it use?
A: Weighing‑type measurement with high stability and accuracy.
Q3: Does it support report printing?
A: Yes, it can automatically print curves and reports, and support duplicate copies.
Q4: Are trolley and computer optional?
A: Yes, trolley, computer and printer are all optional configurations.
Inquiry
For quotation, user manual, catalog or more details, please feel free to contact us.
Hot Tags: wired/wireless intelligent uroflowmeter, China wired/wireless intelligent uroflowmeter suppliers
Technical Parameters
|
Feature |
Details |
|
Urine output |
0mL–1000mL, error ≤ ±1% |
|
Urination time |
0s–300s, error ≤ ±1% |
|
Average urinary flow rate |
0mL/s–50mL/s, error ≤ ±2% |
